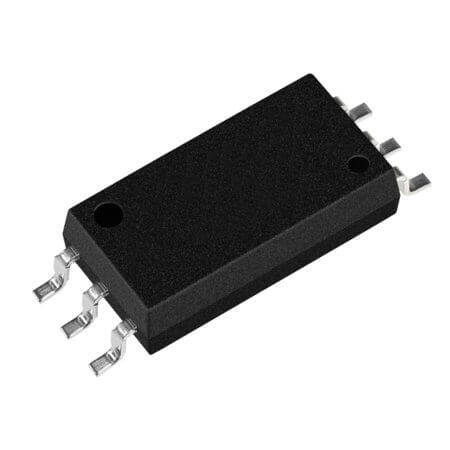

TLP5702(TP,E(T IC-5702 OPTOC. 5KV 1CH GATE DRIVER 6SO

TLP5702(TP,E(T IC-5702 OPTOC. 5KV 1CH GATE DRIVER 6SO Description

TLP5702(TP,E(T IC-5702 OPTOC. 5KV 1CH GATE DRIVER 6SO The product TLP5702(TP,E(T (IC-5702 OPTOC. 5KV 1CH GATE DRIVER 6SO) is a high-performance logic-output optocoupler designed for robust electrical isolation and signal transfer. Manufactured by a trusted supplier, it features a propagation delay of 200ns, 200ns, an input type of DC, and an output type of Push-Pull, Totem Pole. The optocoupler supports an output current of 1A and an isolation voltage of 5000Vrms, ensuring reliable operation in diverse applications. With an input forward voltage of 1.55V, a supply voltage range of 15V to 30V, and an operating temperature range of -40°C~+110°C, it is both versatile and durable. Compliant with RoHS standards, this optocoupler is available in TAPE&REEL packaging, making it a reliable choice for modern electronic systems.

TLP5702(TP,E(T IC-5702 OPTOC. 5KV 1CH GATE DRIVER 6SO Technical Specifications

• Manufacturer: TOSHIBA
• Features: Photocouplers GaA As Infrared LED & Photo IC
• MountingType: SMT
• Package/Case: SO6-5
• NumberofChannel: 1
• PropagationDelayTime(Low/High): 200ns, 200ns
• InputType: DC
• OutputType: Push-Pull, Totem Pole
• OutputCurrent: 1A
• IsolationVoltage: 5000Vrms
• InputForwardVoltage: 1.55V
• SupplyVoltage: 15V to 30V
• OperatingTemperature: -40°C~+110°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
