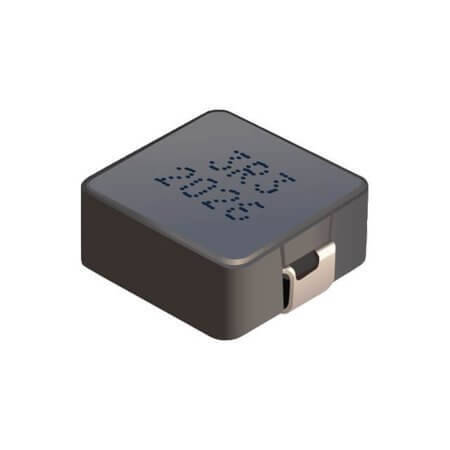

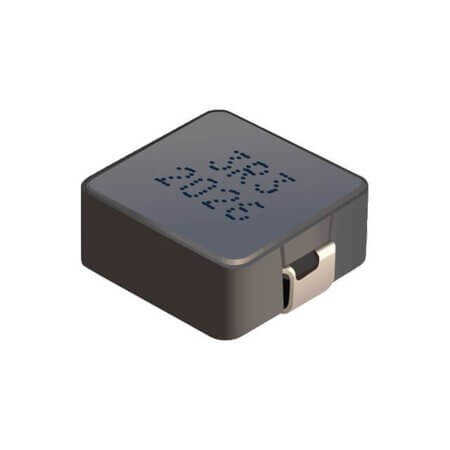

SRP7028AA-6R8M INDUCTOR FIXED 6.8UH 4.5A 50 MOHM SMD

SRP7028AA-6R8M INDUCTOR FIXED 6.8UH 4.5A 50 MOHM SMD Description

SRP7028AA-6R8M INDUCTOR FIXED 6.8UH 4.5A 50 MOHM SMD The SRP7028AA-6R8M is an advanced fixed inductor tailored for high-performance applications. With its INDUCTOR FIXED 6.8UH 4.5A 50 MOHM SMD, this component ensures reliable and efficient power management. Manufactured by BOURNS, it features compact dimensions of 7.10mm x 6.60mm x 2.80mm, making it ideal for space-constrained designs. Its ability to operate within -55°C ~ +155°C demonstrates its durability and versatility. Compliant with ROHS standards, the SRP7028AA-6R8M reflects a commitment to eco-friendly practices. Packaged as TAPE&REEL, it is the perfect choice for engineers seeking precision, performance, and reliability in their circuits.

SRP7028AA-6R8M INDUCTOR FIXED 6.8UH 4.5A 50 MOHM SMD Technical Specifications

• Manufacturer: BOURNS
• Series: SRP
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Wire Wound
• Shielding: Shielded
• Inductance: 6.8uH
• CurrentRating: 4.5A
• Current-Saturation(Isat):
• Tolerance: ±20%
• DCResistance(DCR): 43m Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 7.10mm
• Width: 6.60mm
• Height: 2.80mm
• OperationTemperature: -55°C ~ +155°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
