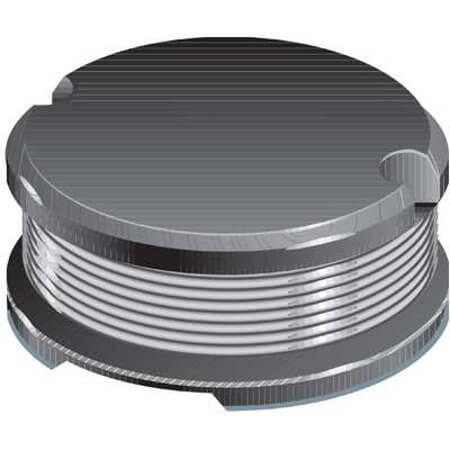

SDR1307-2R7ML INDUCTOR FIXED 2.7uH 13x13mm

SDR1307-2R7ML INDUCTOR FIXED 2.7uH 13x13mm Description

SDR1307-2R7ML INDUCTOR FIXED 2.7uH 13x13mm The SDR1307-2R7ML is an advanced fixed inductor tailored for high-performance applications. With its INDUCTOR FIXED 2.7uH 13x13mm, this component ensures reliable and efficient power management. Manufactured by BOURNS, it features compact dimensions of 13.00mm x 13.00mm x 7.00mm, making it ideal for space-constrained designs. Its ability to operate within -40°C ~ +125°C demonstrates its durability and versatility. Compliant with ROHS standards, the SDR1307-2R7ML reflects a commitment to eco-friendly practices. Packaged as TAPE&REEL, it is the perfect choice for engineers seeking precision, performance, and reliability in their circuits.

SDR1307-2R7ML INDUCTOR FIXED 2.7uH 13x13mm Technical Specifications

• Manufacturer: BOURNS
• Series: SDR
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Wire Wound
• Shielding: Unshielded
• Inductance: 2.7uH
• CurrentRating: 8.2A
• Current-Saturation(Isat):
• Tolerance: ±20%
• DCResistance(DCR): 8m Ohms
• Applications: General Purpose
• Diameter:
• Length: 13.00mm
• Width: 13.00mm
• Height: 7.00mm
• OperationTemperature: -40°C ~ +125°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
