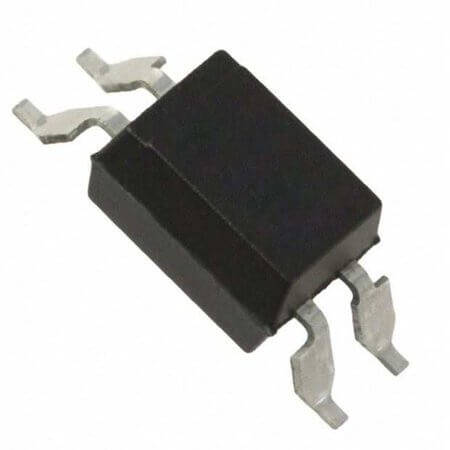

PS2505-1XSM OPTOCOUPLER AC INPUTHIGHDENSITY MOUNTING SINGLE

PS2505-1XSM OPTOCOUPLER AC INPUTHIGHDENSITY MOUNTING SINGLE Description

The PS2505-1XSM OPTOCOUPLER AC INPUTHIGHDENSITY MOUNTING SINGLE The PS2505-1XSM by ISOCOM is a cutting-edge phototransistor optocoupler designed for reliable and efficient isolation. With an output voltage of 80V and an output current of 50mA, it ensures excellent performance across various systems. This optocoupler features an isolation voltage of 5300Vrms and a forward voltage of 1.2V, making it suitable for demanding applications. Operating in a temperature range of -30°C~+100°C, the PS2505-1XSM is built to withstand challenging environments. Compliant with ROHS standards and packaged in a TUBE format, this optocoupler is the ideal choice for advanced electronic designs.

PS2505-1XSM OPTOCOUPLER AC INPUTHIGHDENSITY MOUNTING SINGLE Technical Specifications

• Features: High Density AC Input Phototransistor Optically Coupled Isolators
• Manufacturer: ISOCOM
• MountingType: SMT
• Package  /Case: SMD4
• Number  ofChannel: 1
• Current  TransferRatio: %80 - %600
• OutputVoltage: 80V
• OutputCurrent: 50mA
• IsolationVoltage: 5300Vrms
• ForwardVoltage: 1.2V
• OperatingTemperature: -30°C~+100°C
• Rohs: ROHS
• Packaging: TUBE
