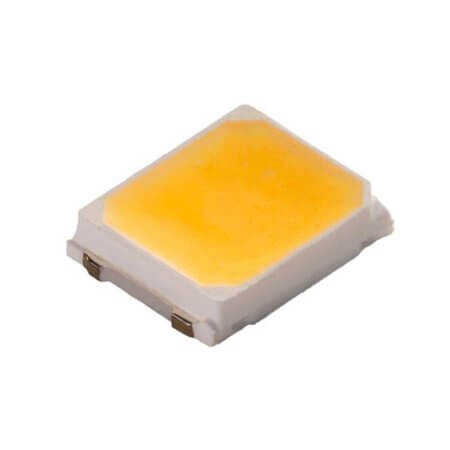

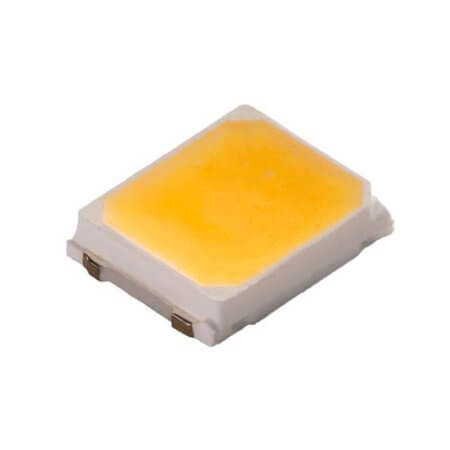

P28351-W41SG1H0FJ2J5-LX0 LED SMD 2835 NW 4000K 70-80LM@30mA 80CRI(18V 30mA)

P28351-W41SG1H0FJ2J5-LX0 LED SMD 2835 NW 4000K 70-80LM@30mA 80CRI(18V 30mA) Description

The P28351-W41SG1H0FJ2J5-LX0 LED SMD 2835 NW 4000K 70-80LM@30mA 80CRI(18V 30mA) The P28351-W41SG1H0FJ2J5-LX0 is a high-quality product offering LED SMD 2835 NW 4000K 70-80LM@30mA 80CRI(18V 30mA). With a shrink ratio of N/A and -40°C~+85°C operating temperature, it provides reliability in various applications.

P28351-W41SG1H0FJ2J5-LX0 LED SMD 2835 NW 4000K 70-80LM@30mA 80CRI(18V 30mA) Technical Specifications

• Manufacturer: RUNLITE
• Color: Neutral White
• MountingType: SMT
• Package/Case: 2835
• MountingStyle: Top View
• MaxPower: 600mW
• CCT: 3796-4270K
• Luminous Flux(25°C): 70-80lm
• Luminous Flux(85°C):
• Luminous Intensity(25°C):
• ForwardVoltage: 18.20-20.00V @ 25°C
• Forward Current: 30mA
• TestCurrent: 30mA
• CRI: 80
• ViewAngle: 120°
• ThermalResistance: 45°C/W
• Diameter:
• Length: 3.50mm
• Width: 2.80mm
• Height: 0.70mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• TAPE&REEL: TAPE&REEL
• ShrinkRatio: N/A
