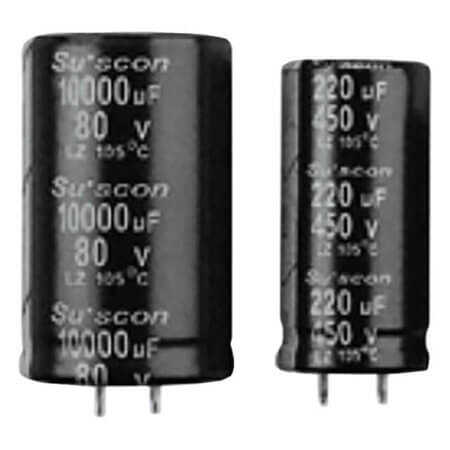

LZ450A221N400E99YS0A CAP.EL.220uF 450V 25x40 10MM 105C 2000H AEC-Q200 T

LZ450A221N400E99YS0A CAP.EL.220uF 450V 25x40 10MM 105C 2000H AEC-Q200 T Description

LZ450A221N400E99YS0A CAP.EL.220uF 450V 25x40 10MM 105C 2000H AEC-Q200 T The LZ450A221N400E99YS0A is a high-quality product offering CAP.EL.220uF 450V 25x40 10MM 105C 2000H AEC-Q200 T. With a shrink ratio of N/A and -40°C~+105°C operating temperature, it provides reliability in various applications.

LZ450A221N400E99YS0A CAP.EL.220uF 450V 25x40 10MM 105C 2000H AEC-Q200 T Technical Specifications

• Manufacturer: SUSCON
• Features:
• CapacitorType: Electrolytic
• Series: LZ
• MountingType: THT
• Package/Case: Snap-IN (2Pin)
• Polarization: Polar
• Capacitance: 220uF
• VoltageRating: 450VDC
• Tolerance: 0% +20%
• LeadSpacing: 10.00mm
• LeadForm:
• RippleCurrent: 1.13A
• ESR Frequency:
• Impedance Frequency:
• Lifetime Temperature: 2000 Hrs @ 105°C
• Applications: Automotive(AEC-Q200)
• Diameter: 25.00mm
• Length: 40.00mm
• Width:
• Height:
• OperatingTemperature: -40°C~+105°C
• ROHS: ROHS
• Packaging: BOX
• ShrinkRatio:

---

You can click for product datasheet.
