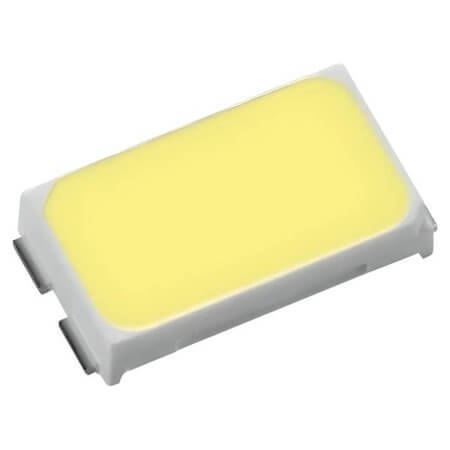

LEMWS59R80HZ2A00 LED SMD 5630 CW 5000K 47,6LM@100mA

LEMWS59R80HZ2A00 LED SMD 5630 CW 5000K 47,6LM@100mA Description

LEMWS59R80HZ2A00 LED SMD 5630 CW 5000K 47,6LM@100mA The LEMWS59R80HZ2A00 is a high-quality product offering LED SMD 5630 CW 5000K 47,6LM@100mA. With a shrink ratio of N/A and -40°C~+85°C operating temperature, it provides reliability in various applications.

LEMWS59R80HZ2A00 LED SMD 5630 CW 5000K 47,6LM@100mA Technical Specifications

• Manufacturer: LG
• Color: Neutral White
• MountingType: SMT
• Package/Case: 5630
• MountingStyle: Top View
• MaxPower: 648mW
• CCT: 5000K
• Luminous Flux(25°C): 26-34.50lm
• Luminous Flux(85°C):
• Luminous Intensity(25°C): 8.20-10.90cd
• ForwardVoltage: 2.80-3.10V @ 25°C
• Forward Current: 200mA
• TestCurrent: 65mA
• CRI: 80
• ViewAngle: 120°
• ThermalResistance: 15°C/W
• Diameter:
• Length: 5.60mm
• Width: 3.00mm
• Height: 0.90mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• TAPE&REEL: TAPE&REEL
• ShrinkRatio:

---

You can click for product datasheet.
