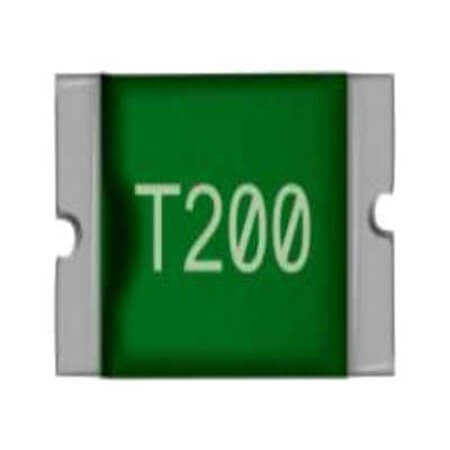

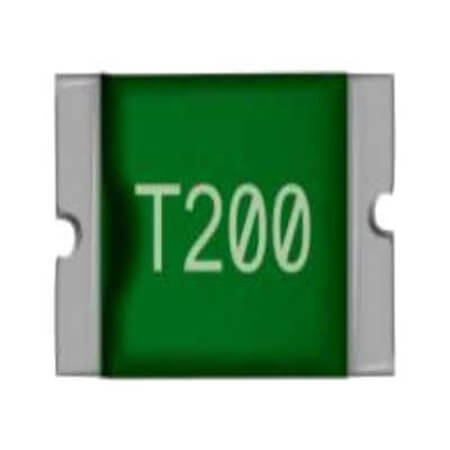

KMC3S100RY THERMISTOR PTC RESETTABLE FUSE 1206 1A 6V SMT

KMC3S100RY THERMISTOR PTC RESETTABLE FUSE 1206 1A 6V SMT Description

KMC3S100RY THERMISTOR PTC RESETTABLE FUSE 1206 1A 6V SMT The KMC3S100RY, manufactured by THINKING, is a high-performance PTC resettable fuse designed for thermistor ptc resettable fuse 1206 1a 6v smt. It offers reliable overcurrent protection with a maximum voltage rating of 6V. The fuse features a trip time of 300ms, ensuring fast response to overcurrent events. Its compact dimensions of 3.20mm x 1.60mm x N/A allow for easy integration into various applications. Operating within a temperature range of -40°C~+85°C, it performs reliably in diverse environments. As a rohs-compliant product, it meets stringent environmental and safety standards. Packaged in tape&reel format, it ensures secure handling and storage. With its robust design and advanced features, the KMC3S100RY is an excellent choice for professionals seeking reliable PTC fuse solutions.

KMC3S100RY THERMISTOR PTC RESETTABLE FUSE 1206 1A 6V SMT Technical Specifications

• Manufacturer: THINKING
• MountingType: SMT
• Package/Case: 1206 (3216 Metric)
• Pitch:
• Resistance(Min): 65m Ohms
• Resistance(Max): 210m Ohms
• Current-Hold: 1A
• Current-Trip: 1.8A
• Current(Max): 100A
• Voltage(Max): 6V
• Time-Trip: 300ms
• Applications:
• Diameter:
• Length: 3.20mm
• Width: 1.60mm
• Height:
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
