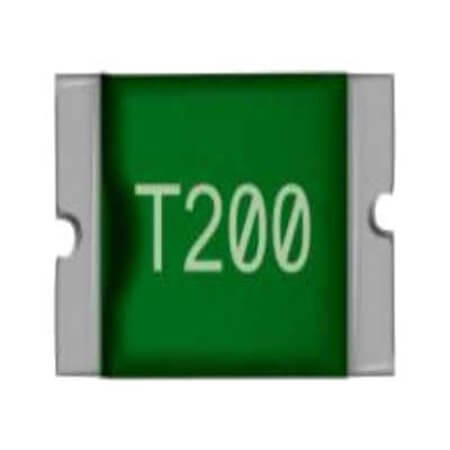

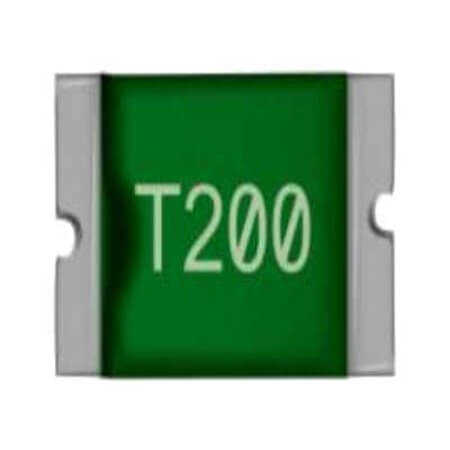

KMC3S020RY004 THERMISTOR PTC RESETTABLE FUSE 1206 0.20A 30V SMT

KMC3S020RY004 THERMISTOR PTC RESETTABLE FUSE 1206 0.20A 30V SMT Description

KMC3S020RY004 THERMISTOR PTC RESETTABLE FUSE 1206 0.20A 30V SMT The KMC3S020RY004, manufactured by THINKING, is a high-performance PTC resettable fuse designed for thermistor ptc resettable fuse 1206 0.20a 30v smt. It offers reliable overcurrent protection with a maximum voltage rating of 24V. The fuse features a trip time of 100ms, ensuring fast response to overcurrent events. Its compact dimensions of 3.20mm x 1.60mm x N/A allow for easy integration into various applications. Operating within a temperature range of -40°C~+85°C, it performs reliably in diverse environments. As a rohs-compliant product, it meets stringent environmental and safety standards. Packaged in tape&reel format, it ensures secure handling and storage. With its robust design and advanced features, the KMC3S020RY004 is an excellent choice for professionals seeking reliable PTC fuse solutions.

KMC3S020RY004 THERMISTOR PTC RESETTABLE FUSE 1206 0.20A 30V SMT Technical Specifications

• Manufacturer: THINKING
• MountingType: SMT
• Package/Case: 1206 (3216 Metric)
• Pitch:
• Resistance(Min): 650m Ohms
• Resistance(Max): 2.6 Ohms
• Current-Hold: 200mA
• Current-Trip: 420mA
• Current(Max): 100A
• Voltage(Max): 24V
• Time-Trip: 100ms
• Applications:
• Diameter:
• Length: 3.20mm
• Width: 1.60mm
• Height:
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
