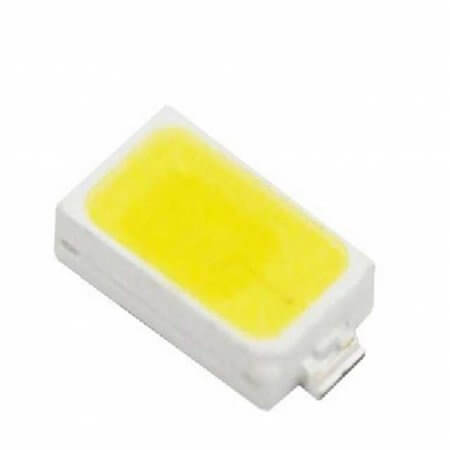

HLA5730D1WS1HR1-W53 LED SMD 5730 WW 2900-3000K min.48LM@150mA 70CRI

HLA5730D1WS1HR1-W53 LED SMD 5730 WW 2900-3000K min.48LM@150mA 70CRI Description

HLA5730D1WS1HR1-W53 LED SMD 5730 WW 2900-3000K min.48LM@150mA 70CRI The HLA5730D1WS1HR1-W53 is a high-quality product offering LED SMD 5730 WW 2900-3000K min.48LM@150mA 70CRI. With a shrink ratio of N/A and -40°C~+85°C operating temperature, it provides reliability in various applications.

HLA5730D1WS1HR1-W53 LED SMD 5730 WW 2900-3000K min.48LM@150mA 70CRI Technical Specifications

• Manufacturer: HONGLITRONIC
• Color: Warm White
• MountingType: SMT
• Package/Case: 5730
• MountingStyle: Top View
• MaxPower: 500mW
• CCT: 2900-3000K
• Luminous Flux(25°C): 48lm
• Luminous Flux(85°C):
• Luminous Intensity(25°C):
• ForwardVoltage: 2.80-3.60V @ 25°C
• Forward Current: 150mA
• TestCurrent: 150mA
• CRI: 70
• ViewAngle: 115°
• ThermalResistance: 22°C/W
• Diameter:
• Length: 5.70mm
• Width: 3.00mm
• Height: 0.90mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• TAPE&REEL: TAPE&REEL
• ShrinkRatio:

---

You can click for product datasheet.
