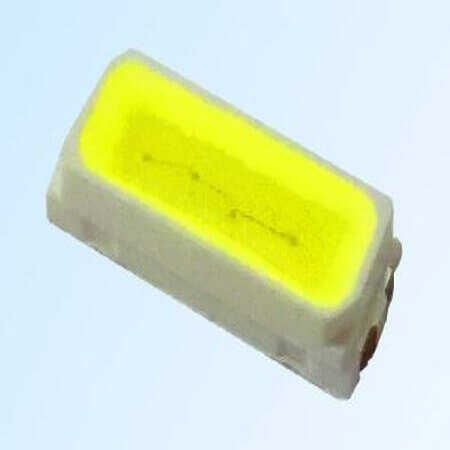

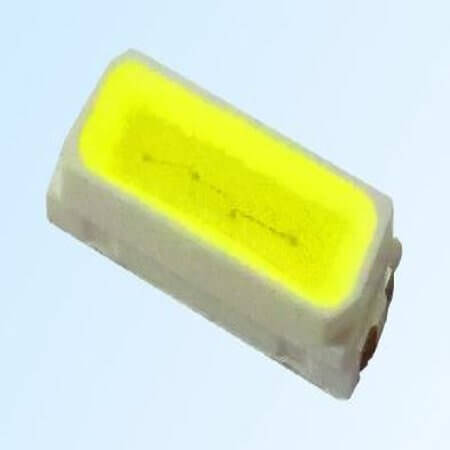

HLA4014H421WS1HR3DMHLCS1 LED SMD 4014 CW 6500K min.24LM@60mA 80CRI

HLA4014H421WS1HR3DMHLCS1 LED SMD 4014 CW 6500K min.24LM@60mA 80CRI Description

HLA4014H421WS1HR3DMHLCS1 LED SMD 4014 CW 6500K min.24LM@60mA 80CRI The HLA4014H421WS1HR3DMHLCS1 is a high-quality product offering LED SMD 4014 CW 6500K min.24LM@60mA 80CRI. With a shrink ratio of N/A and -40°C~+85°C operating temperature, it provides reliability in various applications.

HLA4014H421WS1HR3DMHLCS1 LED SMD 4014 CW 6500K min.24LM@60mA 80CRI Technical Specifications

• Manufacturer: HONGLITRONIC
• Color: Cool White
• MountingType: SMT
• Package/Case: 4014
• MountingStyle: Top View
• MaxPower: 306mW
• CCT: 6500K
• Luminous Flux(25°C): 24lm
• Luminous Flux(85°C):
• Luminous Intensity(25°C):
• ForwardVoltage: 2.80-3.40V @ 25°C
• Forward Current: 90mA
• TestCurrent: 60mA
• CRI: 80
• ViewAngle: 120°
• ThermalResistance: 45°C/W
• Diameter:
• Length: 4.00mm
• Width: 1.45mm
• Height: 0.70mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• TAPE&REEL: TAPE&REEL
• ShrinkRatio:

---

You can click for product datasheet.
