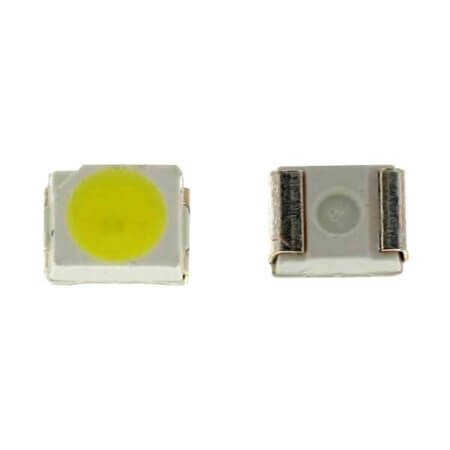

HLA3528H343WS113HR3-W63 LED SMD 3528 WW 2800-2900K W63 7,5-8lm@20ma 80CR

HLA3528H343WS113HR3-W63 LED SMD 3528 WW 2800-2900K W63 7,5-8lm@20ma 80CR Description

HLA3528H343WS113HR3-W63 LED SMD 3528 WW 2800-2900K W63 7,5-8lm@20ma 80CR The HLA3528H343WS113HR3-W63 is a high-quality product offering LED SMD 3528 WW 2800-2900K W63 7,5-8lm@20ma 80CR. With a shrink ratio of N/A and -40°C~+85°C operating temperature, it provides reliability in various applications.

HLA3528H343WS113HR3-W63 LED SMD 3528 WW 2800-2900K W63 7,5-8lm@20ma 80CR Technical Specifications

• Manufacturer: HONGLITRONIC
• Color: Warm White
• MountingType: SMT
• Package/Case: 3528
• MountingStyle: Top View
• MaxPower: 96mW
• CCT: 2800-3100K
• Luminous Flux(25°C): 7.50lm
• Luminous Flux(85°C):
• Luminous Intensity(25°C):
• ForwardVoltage: 2.60-3.20V @ 25°C
• Forward Current: 30mA
• TestCurrent: 20mA
• CRI: 80
• ViewAngle: 100°
• ThermalResistance: 100°C/W
• Diameter:
• Length: 3.50mm
• Width: 2.80mm
• Height: 1.40mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• TAPE&REEL: TAPE&REEL
• ShrinkRatio:

---

You can click for product datasheet.
