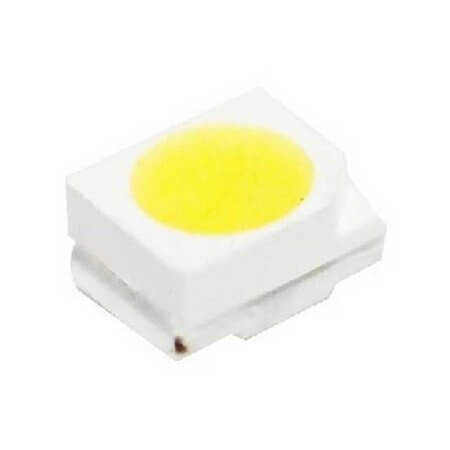

HLA3528H343WS113HR3-W53 LED SMD 3528 WW 2900-3000K min.6,3LM@20mA 80CRI

HLA3528H343WS113HR3-W53 LED SMD 3528 WW 2900-3000K min.6,3LM@20mA 80CRI Description

HLA3528H343WS113HR3-W53 LED SMD 3528 WW 2900-3000K min.6,3LM@20mA 80CRI The HLA3528H343WS113HR3-W53 is a high-quality product offering LED SMD 3528 WW 2900-3000K min.6,3LM@20mA 80CRI. With a shrink ratio of N/A and -40°C~+85°C operating temperature, it provides reliability in various applications.

HLA3528H343WS113HR3-W53 LED SMD 3528 WW 2900-3000K min.6,3LM@20mA 80CRI Technical Specifications

• Manufacturer: HONGLITRONIC
• Color: Warm White
• MountingType: SMT
• Package/Case: 3528
• MountingStyle: Top View
• MaxPower: 100mW
• CCT: 2900-3000K
• Luminous Flux(25°C): 6.30-6.80lm
• Luminous Flux(85°C):
• Luminous Intensity(25°C):
• ForwardVoltage: 2.80-3.40V @ 25°C
• Forward Current: 30mA
• TestCurrent: 30mA
• CRI: 80
• ViewAngle: 115°
• ThermalResistance: 50°C/W
• Diameter:
• Length: 3.00mm
• Width: 1.40mm
• Height: 0.80mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• TAPE&REEL: TAPE&REEL
• ShrinkRatio:

---

You can click for product datasheet.
