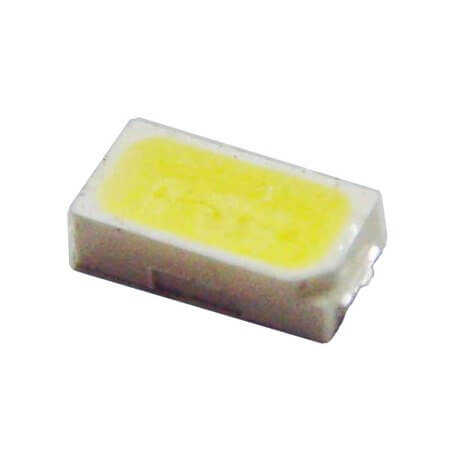

HLA3014H416WS108LHR3-N52 LED SMD 3014 NW 3800-4000K min.12,5LM@30ma 80CRI

HLA3014H416WS108LHR3-N52 LED SMD 3014 NW 3800-4000K min.12,5LM@30ma 80CRI Description

HLA3014H416WS108LHR3-N52 LED SMD 3014 NW 3800-4000K min.12,5LM@30ma 80CRI The HLA3014H416WS108LHR3-N52 is a high-quality product offering LED SMD 3014 NW 3800-4000K min.12,5LM@30ma 80CRI. With a shrink ratio of N/A and -40°C~+85°C operating temperature, it provides reliability in various applications.

HLA3014H416WS108LHR3-N52 LED SMD 3014 NW 3800-4000K min.12,5LM@30ma 80CRI Technical Specifications

• Manufacturer: HONGLITRONIC
• Color: Neutral White
• MountingType: SMT
• Package/Case: 3014
• MountingStyle: Top View
• MaxPower: 100mW
• CCT: 3800-4000K
• Luminous Flux(25°C): 9.50lm
• Luminous Flux(85°C):
• Luminous Intensity(25°C):
• ForwardVoltage: 3.00-3.60V @ 25°C
• Forward Current: 30mA
• TestCurrent: 30mA
• CRI: 80
• ViewAngle: 115°
• ThermalResistance: 50°C/W
• Diameter:
• Length: 3.00mm
• Width: 1.40mm
• Height: 0.80mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• TAPE&REEL: TAPE&REEL
• ShrinkRatio:

---

You can click for product datasheet.
