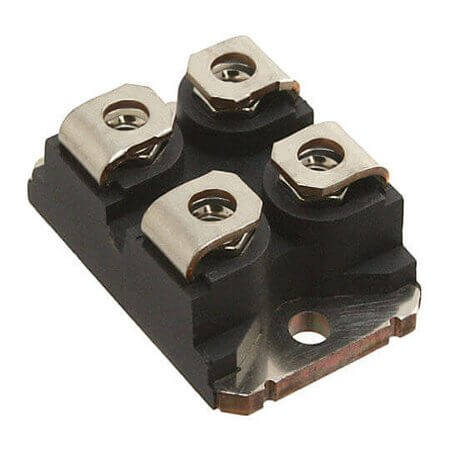

CLA60PD1200NA THYRISTOR DIODE MOD.SINGLE 60A 1200V SOT227B CHASS

CLA60PD1200NA THYRISTOR DIODE MOD.SINGLE 60A 1200V SOT227B CHASS Description

CLA60PD1200NA THYRISTOR DIODE MOD.SINGLE 60A 1200V SOT227B CHASS The CLA60PD1200NA, manufactured by IXYS, is a high-performance module designed for thyristor diode mod.single 60a 1200v sot227b chass. It offers exceptional reliability and efficiency in high-power applications. The module features a forward voltage drop of 1.16V, ensuring minimal power loss. It can handle a power dissipation of 220W, making it suitable for demanding environments. The reverse recovery time is N/A, and the turn-off time is 150us, allowing for efficient switching. Configured as a single module, it provides versatility for various applications. The device operates within a temperature range of -40°C~+125°C, ensuring robust performance in diverse conditions. As a rohs-compliant product, it meets stringent environmental and safety standards. Packaged in tube format, it ensures secure handling and storage. With its advanced features and durable design, the CLA60PD1200NA is an excellent choice for professionals seeking reliable module diode and thyristor solutions.

CLA60PD1200NA THYRISTOR DIODE MOD.SINGLE 60A 1200V SOT227B CHASS Technical Specifications

• Manufacturer: IXYS
• Series: Thyristor Phase Control
• MountingType: Chassis
• Package/Case: SOT227B (Minibloc)
• CurrentOnState(ITav): 60A (2x60A)
• RMSOnState(ITrms): 94A (2x94A)
• CurrentTemperature(IC): 100°C
• CurrentHold(IH): 100mA
• Voltage(VRRM): 1.2kV
• GateTrigger(Vgt): 1.5V
• ForwardDrop(VT): 1.16V
• PowerDissipation: 220W
• Trr:
• Tq: 150us
• Configuration: Single
• Applications:
• JunctionTemperature(Tj):
• OperatingTemperature: -40°C~+125°C
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
