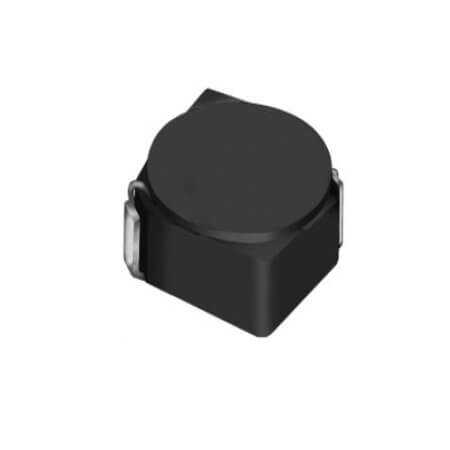

CDRH4D28NP-220NC INDUCTOR POWER 22uHX5X5X3mm SMD

CDRH4D28NP-220NC INDUCTOR POWER 22uHX5X5X3mm SMD Description

CDRH4D28NP-220NC INDUCTOR POWER 22uHX5X5X3mm SMD The CDRH4D28NP-220NC is an advanced fixed inductor tailored for high-performance applications. With its INDUCTOR POWER 22uHX5X5X3mm SMD, this component ensures reliable and efficient power management. Manufactured by SUMIDA, it features compact dimensions of 5.00mm x 5.00mm x 3.00mm, making it ideal for space-constrained designs. Its ability to operate within -40°C ~ +100°C demonstrates its durability and versatility. Compliant with ROHS standards, the CDRH4D28NP-220NC reflects a commitment to eco-friendly practices. Packaged as TAPE&REEL, it is the perfect choice for engineers seeking precision, performance, and reliability in their circuits.

CDRH4D28NP-220NC INDUCTOR POWER 22uHX5X5X3mm SMD Technical Specifications

• Manufacturer: SUMIDA
• Series: CDRH
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology:
• Shielding: Shielded
• Inductance: 22uH
• CurrentRating: 700mA
• Current-Saturation(Isat):
• Tolerance: ±30%
• DCResistance(DCR): 235m Ohms
• Applications: General Purpose
• Diameter:
• Length: 5.00mm
• Width: 5.00mm
• Height: 3.00mm
• OperationTemperature: -40°C ~ +100°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
